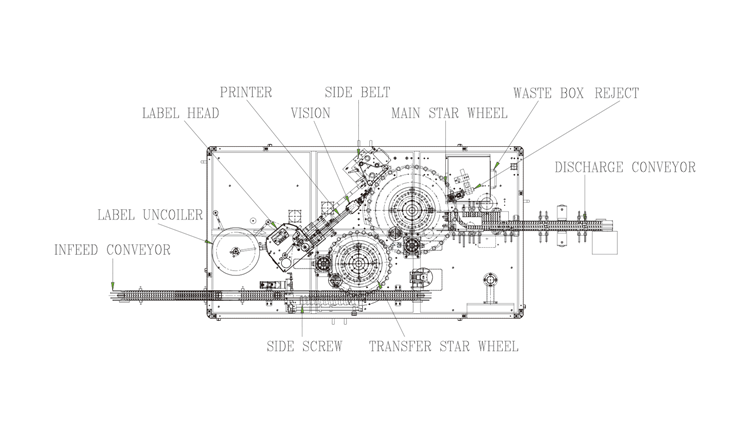

The automatic bottle labeler "MLS-300" is a machine that transfers each bottle to the conveyor and attaches a sticker label to the side of the bottle.
The machine is operated by a conveyor drive, and it is configured with structure that puta a sticker on the side of the bottle for every bottle and discharge it out of the machine.
The operation speed of the machine can be selected step by step.
The drive unit and other units are separated from the production space and located at the bottom of the machine, which is designed to ensure safe access to the machine for maintenance and repair purposes.

Machine
Feature

Achieved high speed by adopting the turn-table method (250~300 bottles/min)

Improved the accuracy and speed of each unit of the machine through the implementation of servo drive technology

Realized user convenience through touch screen operation

Door-type chassis, safety cover (PC material) and interlock structure for worker safety

Quick and easy change part replacement

cGMP applied design

Technical
Specification
