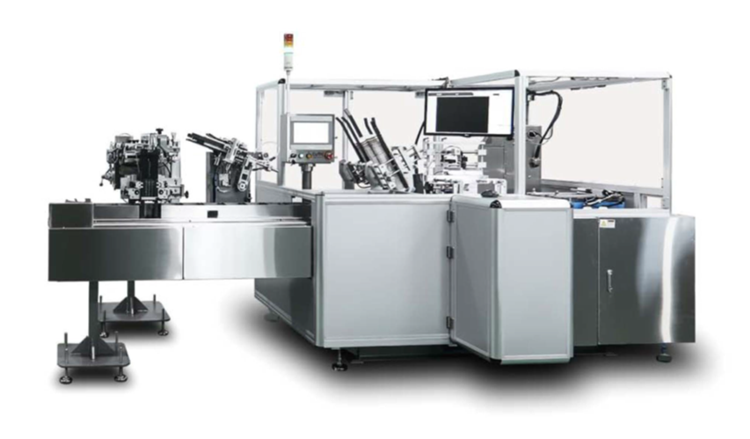

Automatic carton packaging machine "TC-100" is a machine that puts products such as blister, bottle, and tube, into a formed carton and packs it. The output varies depending on the product and carton type, and carton packaging is possible at a speed of up to 60 CATRON per minute.
The continuous operation of the main motor is changed to intermittent operation using an index driver, and stable operation of each part is possible by several cams installed on the main shaft driven by the main motor, and convenient operation is possible through PLC and touch screen panel.
The electric panel is separated as s separate cabinet, and it is designed to be opened and closed in a door-type, so it is easy to maintain.
The safety device is an important part of controlling the operation of the machine and is built into the element by element, so it must be operated as indicated on the monitor of the operation panel.
As the connection with the blister packaging machine is smooth, realizing full automation of mass production.

Machine
Feature

Continuous drive production

Carton forming device using servo motor

Design available for various carton dimensions

Simple maintenance with separate electrical panelboard

cGMP applied design

Technical
Specification
